ZTS Rotary Steering System
* Steering cable available in lengths from 5~30ft. in 1ft. increments
The Zero Torque System (ZTS) is designed to withstand the external forces such as sudden current change, propeller’s torque and waves while driving the boat. ZTS eliminates torque coming from the steering cable with a uniquely patented design of the torque clutch.
Application Guide
-
Can generally be used on boats up to 25ft. in length.
-
Maximum allowable steering wheel diameter is 16".
-
For single station use only.
-
Maximum wheel size: 16” (406.4mm) diameter..
-
Should not be used on boats equipped with engines that exceed
the maximum horse power rating of the boat.
-
Replace/Upgrade the following competitor's helm:
Teleflex®: Safe-T QC, Safe-T
Uflex®: T71FC
Features & Specification
-
Patented ZTS(Zero Torque Steering) System.
-
ZTS system substantially minimizes torque from engine
-
Fast and easy installation with “EZ Clip” feature(not available with dual helm).
-
Optional stainless steel steering cable construction
-
Snap-on bezel with minimum tools required.
-
Compact size and easy installation
-
Bolt-in replacement(upgrade) for ourstandard 3000 Gen ll Rotary Steering System
-
Can generally be used on boats up to 25ft in length
-
Manufactured to meet or exceed A.B.Y.C., N.M.M.A., I.M.C.I.(CE) certification requirements.
| ･Patented ZTS(Zero Torque Steering) System. | ･ZTS system substantially minimizes torque from engine |
|---|
| Model | Part Number | Description |
|---|---|---|
| System | 5600xx | ZTS Gen ll Pinnacle Rotary Steering System |
| System | 5100xx | ZTS Gen ll Rotary Steering System (Standard) |

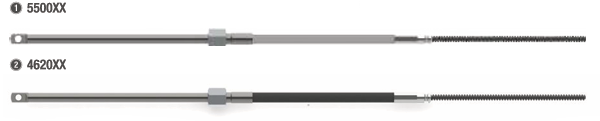

| ① | 5500xx | Pinnacle Rotary Steering Cable (Stainless Steel) |
| ② | 4620xx | Rotary Steering Cable (Galvanized) |

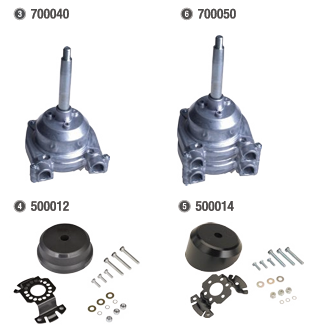

| ③ | 700040 | ZTS Gen ll Planetary Gear Rotary Single Helm |
| ④ | 500012 | 90˚ Bezel Kit (Black) |
| ③ + ④ | 500016 | ZTS Gen ll Planetary Gear Rotary Single Helm + 90˚ Bezel Kit (Black) |
| ⑤ | 500014 | 20˚ Bezel Kit (Black) |
| ⑥ | 700050 | ZTS Gen ll Planetary Gear Rotary Dual Helm |
| ⑦ | 370297 | Spent Core Tube |
| ⑧ | 370002 | 3000/ZTS Rotary Helm Hardware Kit (5/8-18 Thread) |
| 370002-N | 3000/ZTS Rotary Helm Hardware Nut Only (5/8-18 Thread) | |
| ⑨ | 370004 | 3000/ZTS Rotary Helm Hardware Kit (1/2-20 Thread) |
| 370004-N | 3000/ZTS Rotary Helm Hardware Nut Only (1/2-20 Thread) |
